IHB6BV101K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Ind High Current Filter 100uH 10% 1KHz 27A RDL Bulk
PDF
/
Inventory: 7230
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 1.500 38.10mm
Height 38.1mm
Technical
Inductance Frequency - Test 1kHz
Lead/Base Style Radial
Max DC Current 27A
DC Resistance (DCR) 14mOhm Max
Inductance 100μH
Shielding Unshielded
Current Rating (Amps) 16.4A
Min Operating Temperature -55°C
Max Operating Temperature 130°C
Type Wirewound
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Tolerance ±10%
Size / Dimension 2.000Dia 50.80mm
Series IHB
Operating Temperature -55°C~130°C
Physical
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Supply Chain
Factory Lead Time 18 Weeks

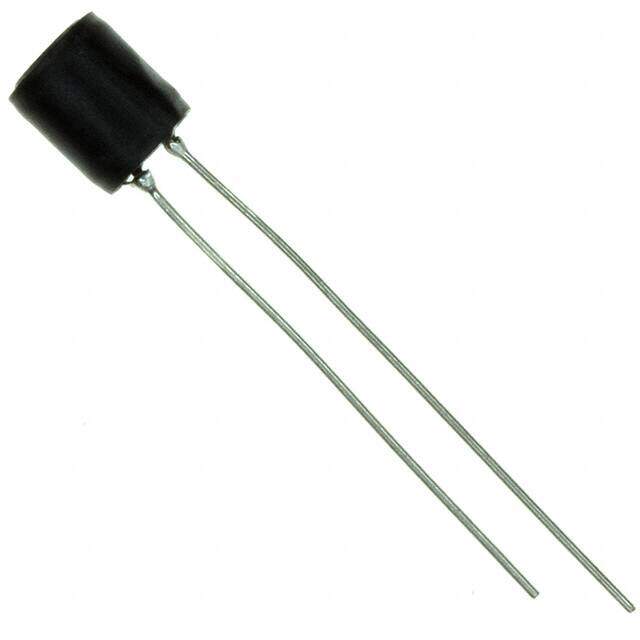

Alternative Model
