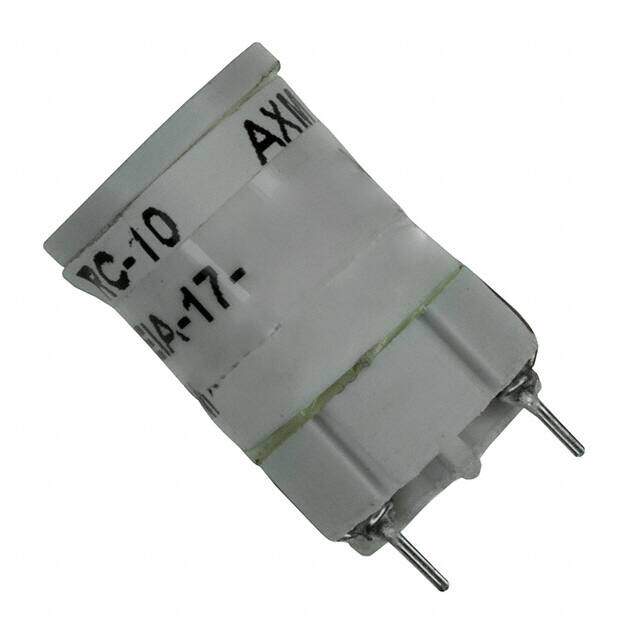

RC-10
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RC Radial Vertical Cylinder 0.600Dia 15.24mm 100muH
PDF
/
Buying Options
Total Price: USD $3.23
Unit Price: USD $3.2296
≥1 USD $3.2296
≥10 USD $2.7016
≥100 USD $2.467168
≥500 USD $2.11464
≥1000 USD $1.938464
≥3000 USD $1.87968
Inventory: 350
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Number of Pins 2
Weight 21.772434g
Material - Core Ferrite
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series RC
Size / Dimension 0.600Dia 15.24mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Radial
Type Wirewound
Composition Wirewound
Current Rating (Amps) 2A
Shielding Unshielded
Current Rating 2A
Lead Pitch 9.53mm
Lead Length 3.81mm
Inductance 100μH
DC Resistance (DCR) 98mOhm
Max DC Current 2A
Inductance Frequency - Test 10kHz
Inductance Tolerance 10%
Max Frequency 200kHz
Dimensions
Diameter 15.2mm
Height 3.81mm
Height Seated (Max) 0.930 23.62mm
Length 15.24mm
Width 9.53mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
