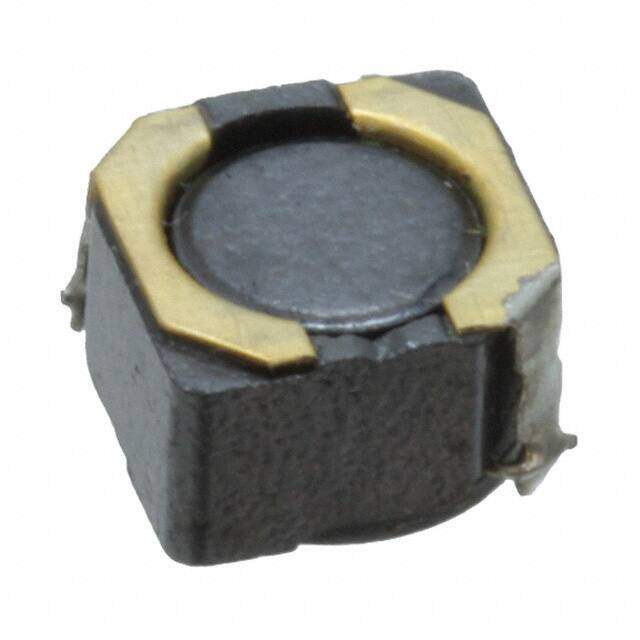

HM66-15100LFTR7 image
Favorite
HM66-15100LFTR7 image
Favorite
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 10UH 550MA 210 MOHM
PDF
/
Inventory: 2378
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series HM66
Size / Dimension 0.150Lx0.150W 3.80mmx3.80mm
Tolerance ±20%
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 550mA
Shielding Shielded
Current Rating 550mA
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 210mOhm Max
Inductance Frequency - Test 100kHz

Dimensions

Height 1.8542mm
Height Seated (Max) 0.073 1.85mm
Length 3.81mm
Width 3.81mm

Compliance

RoHS Status RoHS Compliant
