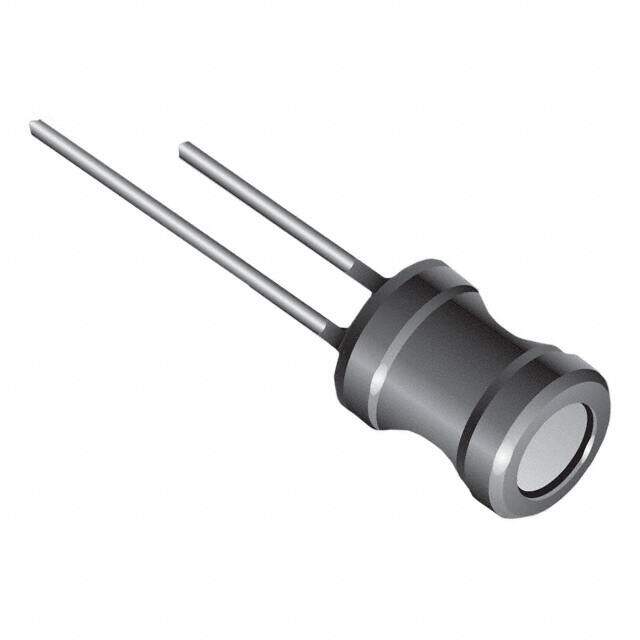

LPV1823-101KL image
Favorite
LPV1823-101KL image
Favorite

LPV1823-101KL

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description LPV Radial Vertical Cylinder 0.709Dia 18.00mm 100muH
PDF
/
Inventory: 7327
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.906 23.00mm
Height 23mm
Diameter 18mm

Technical

DC Current 3A
Inductance Frequency - Test 1kHz
Inductor Application POWER INDUCTOR
Max DC Current 3A
DC Resistance (DCR) 90mOhm Max
Test Frequency 1kHz
Inductance 100μH
Lead Length 15mm
Lead Pitch 9mm
Military Standard Not
Base Part Number LPV1823
Construction Shrink Tube
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Type Wirewound
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.709Dia 18.00mm
Series LPV
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Surface Mount NO
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
