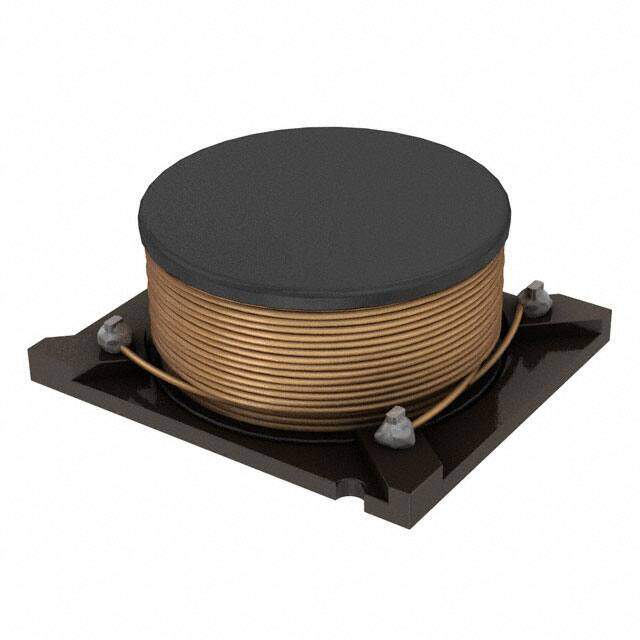

AX97-40330 image
Favorite
AX97-40330 image
Favorite

AX97-40330

Triad Magnetics
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description AX97 Nonstandard 0.634Lx0.622W 16.10mmx15.80mm 33muH
PDF
/
Inventory: 7734
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.284 7.21mm
Height 7.21mm

Technical

Case/Size Code 6362
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 3.5A
DC Resistance (DCR) 60mOhm Max
Test Frequency 100kHz
Inductance 33μH
Current Rating 3.5A
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 4
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.634Lx0.622W 16.10mmx15.80mm
Series AX97
Published 2007
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 17 Weeks
