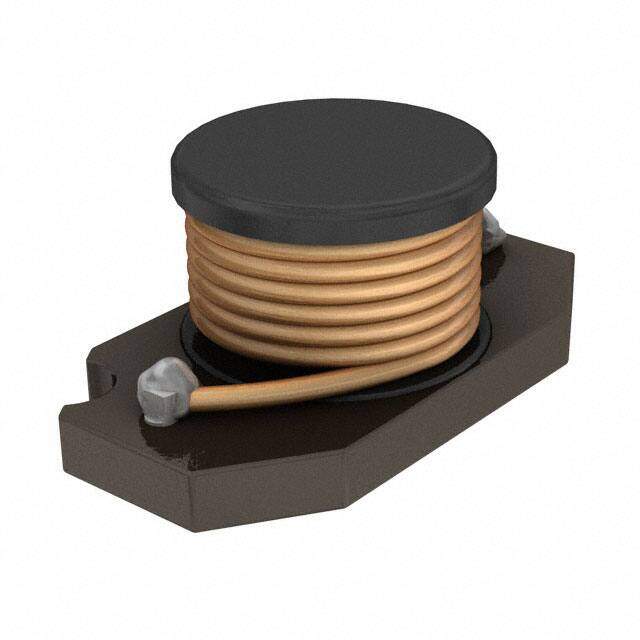

AX97-10471
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AX97 Nonstandard 0.287Lx0.188W 7.30mmx4.78mm 470muH
PDF
/
Inventory: 4659
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Weight 5.896701g
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2006
Series AX97
Size / Dimension 0.287Lx0.188W 7.30mmx4.78mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 120mA
Inductance 470μH
Test Frequency 100kHz
DC Resistance (DCR) 11.55Ohm Max
Max DC Current 200mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 2919
Dimensions
Height 3.23mm
Height Seated (Max) 0.127 3.23mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
