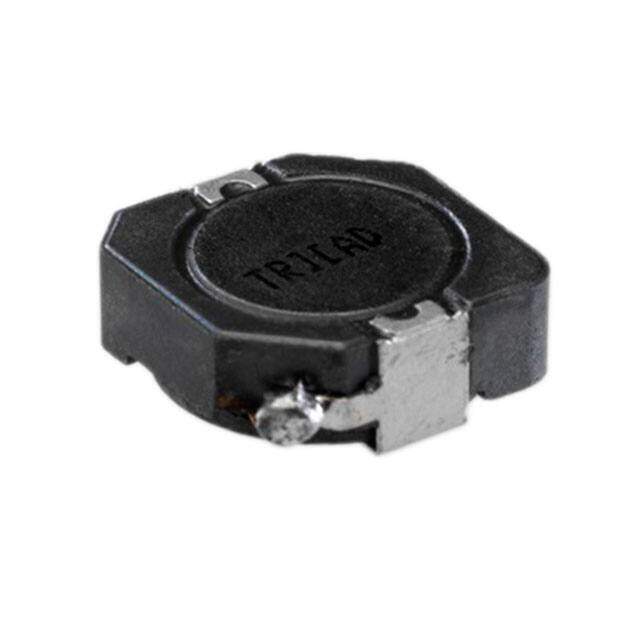

AX104R-101 image
Favorite
AX104R-101 image
Favorite

AX104R-101

Triad Magnetics
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description AX104R Nonstandard 0.409Lx0.406W 10.40mmx10.30mm 100muH
PDF
/
Inventory: 6424
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~85°C
Published 2007
Series AX104R
Size / Dimension 0.409Lx0.406W 10.40mmx10.30mm
Tolerance ±30%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Current Rating 1.35A
Inductance 100μH
Test Frequency 0.1MHz
DC Resistance (DCR) 304mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Case/Size Code 4141

Dimensions

Height 4mm
Height Seated (Max) 0.157 4.00mm

Compliance

RoHS Status ROHS3 Compliant
