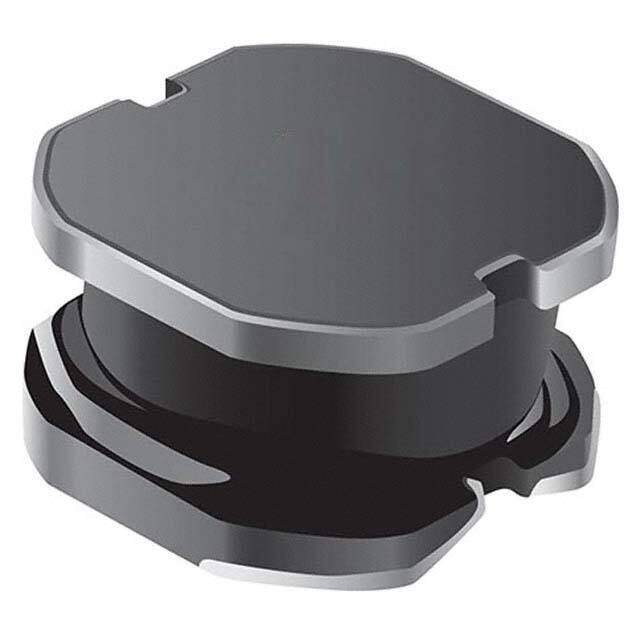

SRN1060-101M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRN1060 Nonstandard 0.394Lx0.386W 10.00mmx9.80mm 100muH
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.7304
≥1 USD $0.7304
≥10 USD $0.62568
≥100 USD $0.573056
≥500 USD $0.521136
≥1000 USD $0.46376
≥3000 USD $0.437677
Inventory: 75792
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.236 6.00mm
Height 6mm
Technical
RMS Current (Irms) 1.7A
DC Current 1.7A
Inductance Tolerance 20%
Q @ Freq 13 @ 2.52MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 4MHz
Max DC Current 1.7A
DC Resistance (DCR) 210mOhm Max
Test Frequency 100kHz
Inductance 100μH
Military Standard Not
Current Rating 1.7A
Depth 10.1mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
Resistance 210MOhm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.394Lx0.386W 10.00mmx9.80mm
Series SRN1060
Published 2006
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Material Resin
Number of Pins 2
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
