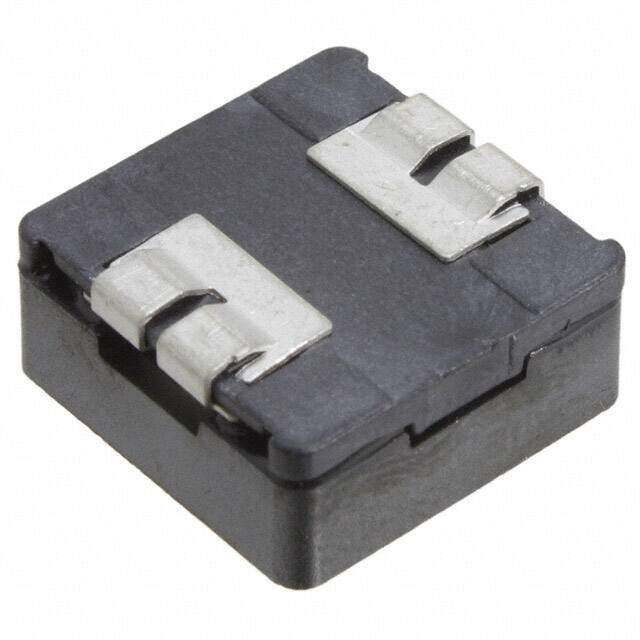

3631B101LL image
Favorite
3631B101LL image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description 3631Sigma Inductors Nonstandard 0.500Lx0.500W 12.70mmx12.70mm 100muH
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4256
≥1 USD $1.4256
≥10 USD $1.20912
≥100 USD $1.098944
≥500 USD $1.03312
≥1000 USD $0.857208
≥3000 USD $0.791296
Inventory: 1863
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Height Seated (Max) 0.256 6.50mm
Height 5.9944mm

Technical

RMS Current (Irms) 1.1A
DC Current 1.1A
Inductance Tolerance 15%
Q Factor 20
Inductor Type GENERAL PURPOSE INDUCTOR
Quality Factor-Min (at L-nom) 20
Lead/Base Style SMD/SMT
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.1A
Current 700mA
DC Resistance (DCR) 220mOhm Max
Test Frequency 1kHz
Max Current Rating 1.1A
Inductance 100μH
Military Standard Not
Current Rating 1.1A
Depth 13mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Composition Wirewound
Resistance 220mOhm
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±10%
Size / Dimension 0.500Lx0.500W 12.70mmx12.70mm
Series 3631, Sigma Inductors
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -25°C~105°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Number of Pins 2
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 28 Weeks
