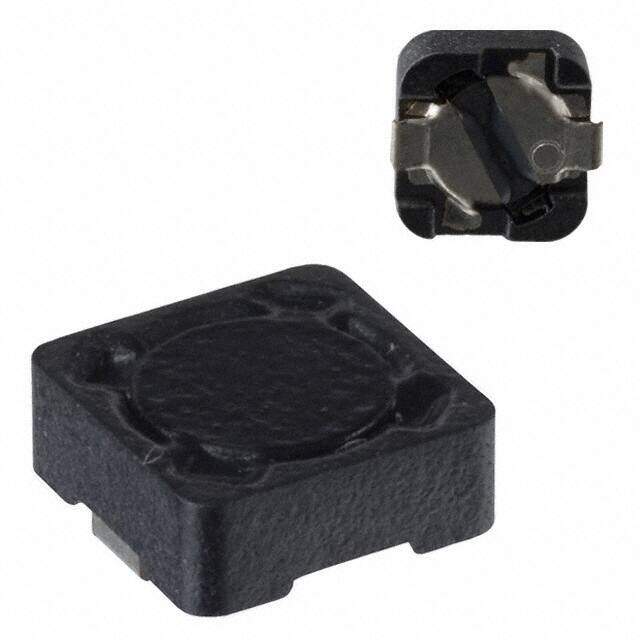

SPD74-104M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Non-RoHS Compliant Wirewound Active Contains Lead Fixed Inductor -55C~125C 1kHz 610mOhm Max 100muH
PDF
/
Inventory: 7932
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.185 4.70mm
Height 4.7mm
Technical
Case/Size Code 2929
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 860mA
DC Resistance (DCR) 610mOhm Max
Test Frequency 1kHz
Inductance 100μH
Current Rating 860mA
Construction Chip
Depth 7.8mm
Number of Functions 1
Shielding YES
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn63Pb37)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±20%
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Series SPD74
Published 2002
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
