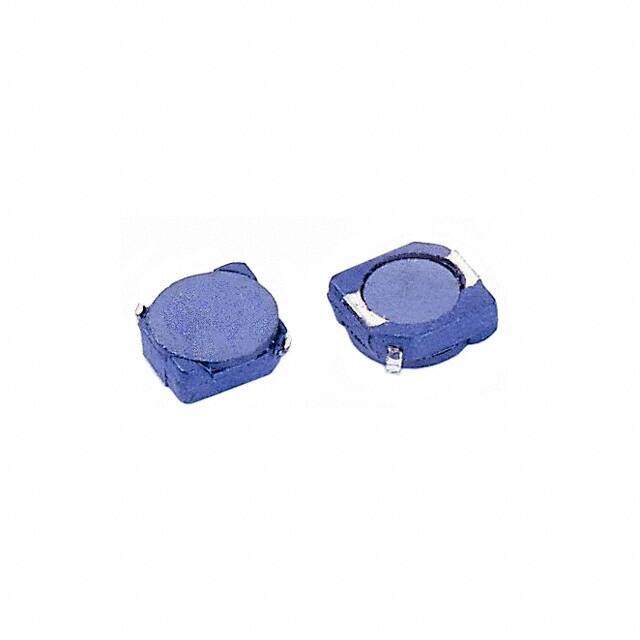

SC312MF-680
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Obsolete 2009 Fixed Inductor -40C~125C 100kHz 4.1Ohm Max 68muH
PDF
/
Inventory: 1968
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 3.81mm
Length 3.81mm
Height Seated (Max) 0.053 1.35mm
Height 1.3462mm
Technical
Current - Saturation 400mA
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 4.1Ohm Max
Test Frequency 100kHz
Inductance 68μH
Current Rating 400mA
Shielding Shielded
Current Rating (Amps) 210mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.150Lx0.150W 3.80mmx3.80mm
Series SC312MF
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
