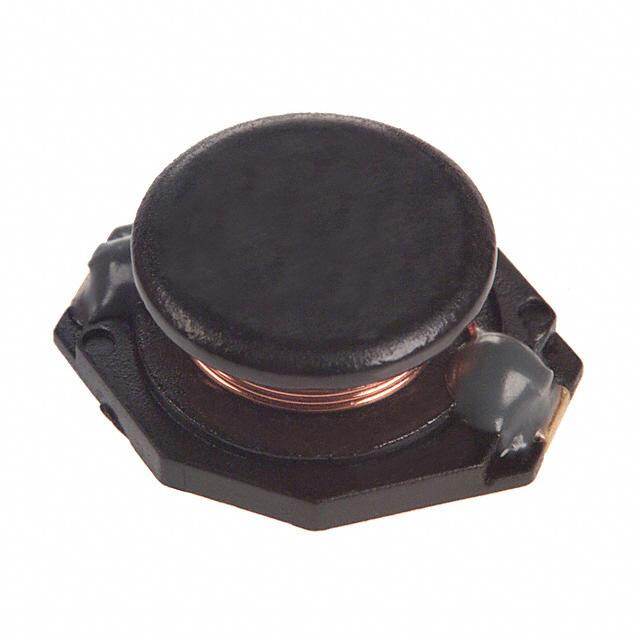

DU1971-100M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Contains Lead 2002 fixed air core inductor 85C 100kHz 31mOhm 10muH
PDF
/
Inventory: 9582
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Width 15.24mm
Length 18.542mm
Height Seated (Max) 7.3914mm
Height 7.3914mm
Technical
Inductance-Nom (L) 10 μH
DC Resistance (DCR) - Parallel 31mOhm
Case/Size Code 7360
Current - Saturation 10A
Inductor Type GENERAL PURPOSE INDUCTOR
Test Frequency 100kHz
Inductance 10 μH
Current Rating 4.3A
Shielding Unshielded
Packing Method TR
HTS Code 8504.50.80.00
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Tolerance 20%
Series DU1971
Published 2002
Packaging Cut Tape (CT)
Physical
Core Material AMORPHOUS MAGNETIC
Package / Case Nonstandard
Mount Surface Mount
