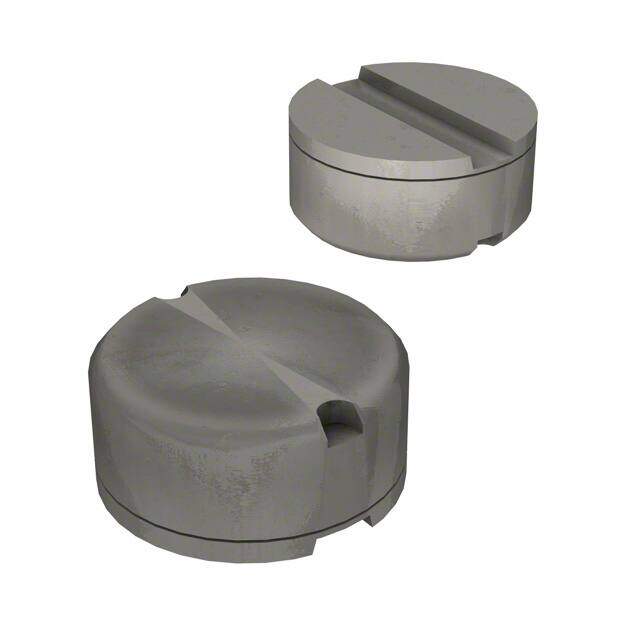

SRR0905-100M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
SRR0905 Nonstandard 0.390Dia 9.90mm 10muH
PDF
/
Buying Options
Total Price: USD $0.83
Unit Price: USD $0.826102
≥1 USD $0.826102
≥10 USD $0.77934
≥100 USD $0.735226
≥500 USD $0.693606
≥1000 USD $0.654344
Inventory: 3190
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2008
Series SRR0905
Size / Dimension 0.390Dia 9.90mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.1A
Shielding Shielded
Current Rating 2.1A
Base Part Number SRR0905
Military Standard Not
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 60mOhm Max
Max DC Current 2.1A
Frequency - Self Resonant 29MHz
Q @ Freq 39 @ 2.52MHz
Inductance Frequency - Test 100kHz
Q Factor 39
DC Current 2.1A
Dimensions
Height 4.5mm
Height Seated (Max) 0.189 4.80mm
Length 9.906mm
Width 9.906mm
Compliance
RoHS Status ROHS3 Compliant
