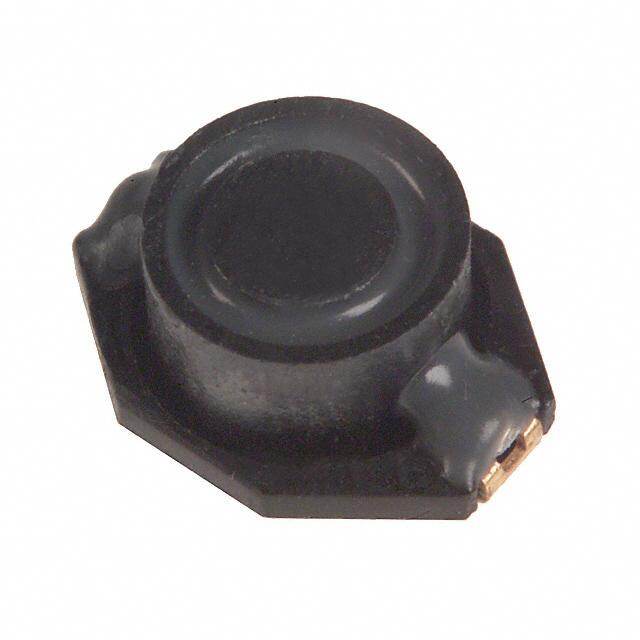

DS1145-560M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Non-RoHS Compliant Contains Lead 2002 Tape & Reel (TR) Fixed Inductor 85C 100kHz 530mOhm 56muH
PDF
/
Inventory: 7461
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case Nonstandard
Technical
Packaging Tape & Reel (TR)
Published 2002
Tolerance 20%
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Shielding Shielded
Current Rating 680mA
Inductance 56 μH
Test Frequency 100kHz
Current - Saturation 680mA
DC Resistance (DCR) - Parallel 530mOhm
Dimensions
Height Seated (Max) 4.4958mm
Length 10.6934mm
Width 8.2042mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead

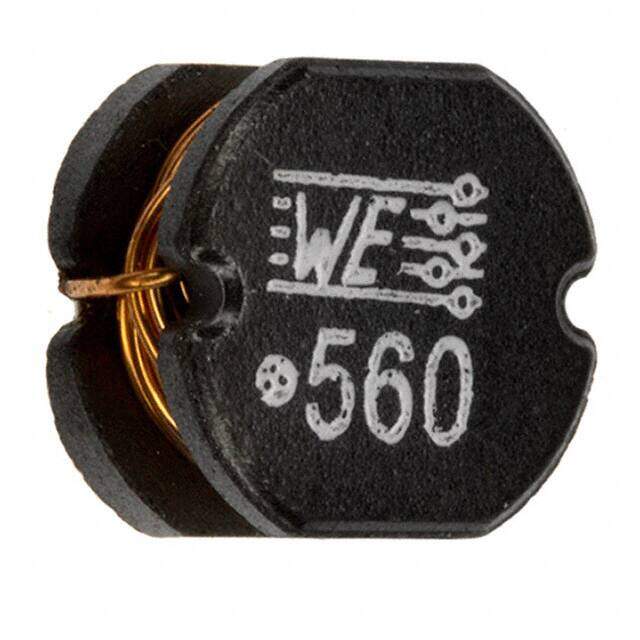

Alternative Model
