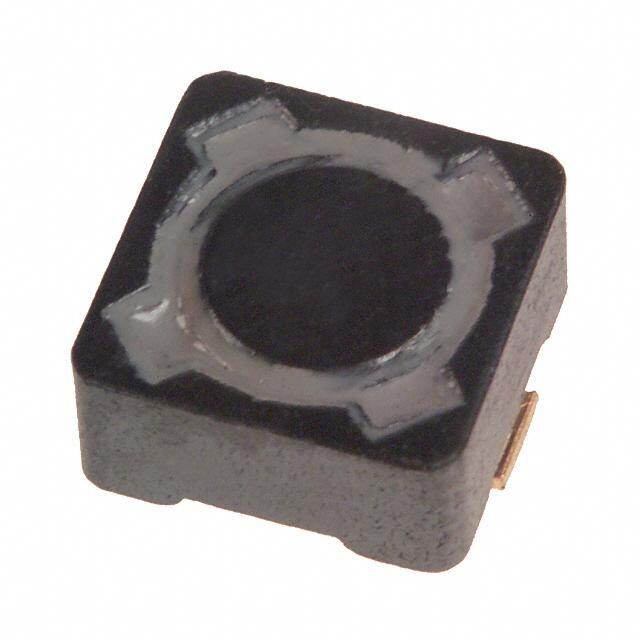

DQ7545-271M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Contains Lead WRAPAROUND Fixed Inductor 85C 100kHz 1.64Ohm 270muH
PDF
/
Inventory: 4656
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Packaging Tape & Reel (TR)
Published 2002
Tolerance 20%
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8504.50.80.00
Shielding Shielded
Number of Functions 1
Current Rating 340mA
Inductance 270 μH
Test Frequency 100kHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 340mA
DC Resistance (DCR) - Parallel 1.64Ohm
Inductance-Nom (L) 270 μH
Dimensions
Height Seated (Max) 4.4958mm
Length 7.493mm
Width 7.493mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
