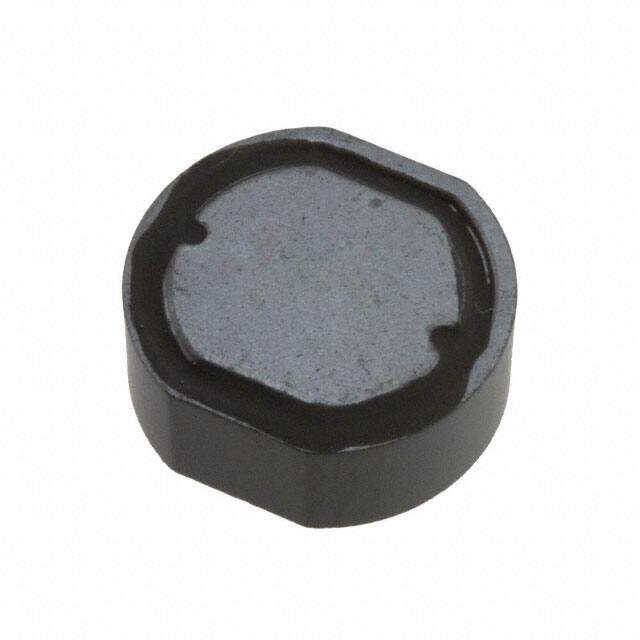

CDR125NP-271MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDR125 Nonstandard 0.496Lx0.457W 12.60mmx11.60mm 270muH
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.729972
≥1 USD $0.729972
≥200 USD $0.282274
≥500 USD $0.273083
≥1000 USD $0.267832
Inventory: 8133
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Published 2007
Series CDR125
Size / Dimension 0.496Lx0.457W 12.60mmx11.60mm
Tolerance -15% +20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Depth 12.1mm
Current Rating 630mA
Inductance 270μH
Test Frequency 1kHz
DC Resistance (DCR) 700mOhm Max
Max DC Current 630mA
Frequency - Self Resonant 4.37MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 5046
Dimensions
Diameter 12.6mm
Height 5.9mm
Height Seated (Max) 0.232 5.90mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
