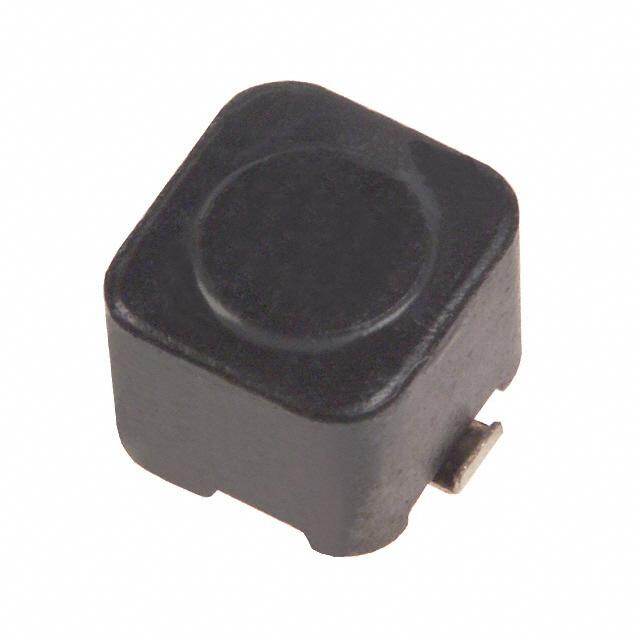

DQ6545-270M image
Favorite
DQ6545-270M image
Favorite

DQ6545-270M

TE Connectivity
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Contains Lead WRAPAROUND Fixed Inductor 85C 100kHz 300mOhm 27muH
PDF
/
Inventory: 2683
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE

Technical

Packaging Tape & Reel (TR)
Published 2002
Tolerance 20%
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8504.50.80.00
Shielding Shielded
Number of Functions 1
Current Rating 820mA
Inductance 27 μH
Test Frequency 100kHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 820mA
DC Resistance (DCR) - Parallel 300mOhm
Rated Current-Max 0.82A
Inductance-Nom (L) 27 μH

Dimensions

Height Seated (Max) 5.0038mm
Length 6.5024mm
Width 6.9088mm

Compliance

RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
