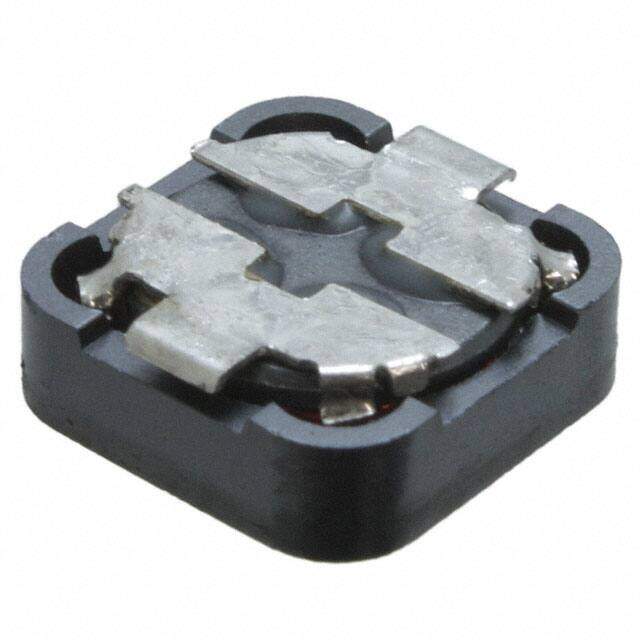

PF0465.273NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PF0465NL Nonstandard 0.283Lx0.283W 7.20mmx7.20mm 27muH
PDF
/
Inventory: 3563
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.205 5.20mm
Height 4.0132mm
Technical
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 19MHz
Max DC Current 1.2A
DC Resistance (DCR) 95mOhm Max
Test Frequency 100kHz
Inductance 27μH
Current Rating 1.2A
Depth 7.2mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.283Lx0.283W 7.20mmx7.20mm
Series PF0465NL
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
