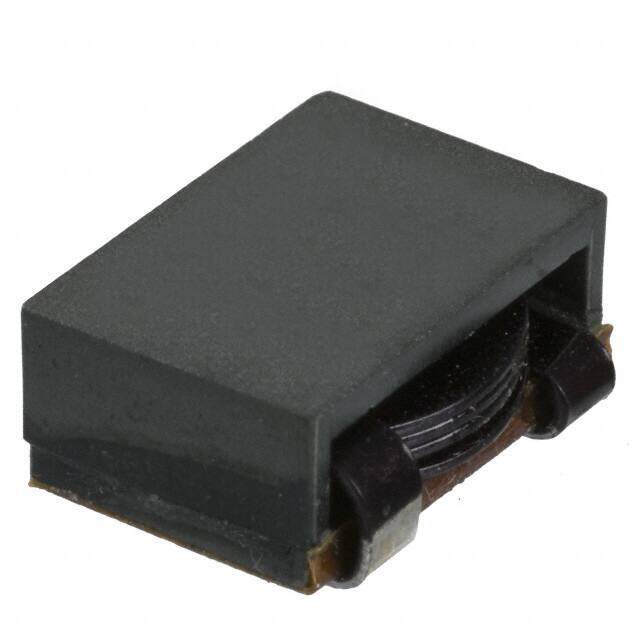

B82559A0222A013
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Fixed Inductors 2.15uH 15A 10% 13.1x11mm SMD
PDF
/
Buying Options
Total Price: USD $2.9
Unit Price: USD $2.904
≥1 USD $2.904
≥10 USD $2.4288
≥100 USD $2.217952
≥500 USD $1.901152
≥1000 USD $1.742664
≥3000 USD $1.689846
Inventory: 3571
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~130°C
Packaging Tape & Reel (TR)
Published 1999
Series ERU13
Size / Dimension 0.512Lx0.421W 13.00mmx10.70mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 15A
Shielding Shielded
Inductance 2.15μH
DC Resistance (DCR) 3.2mOhm
Inductance Frequency - Test 10kHz
Current - Saturation 15A
Dimensions
Height Seated (Max) 0.195 4.95mm
Compliance
RoHS Status ROHS3 Compliant
