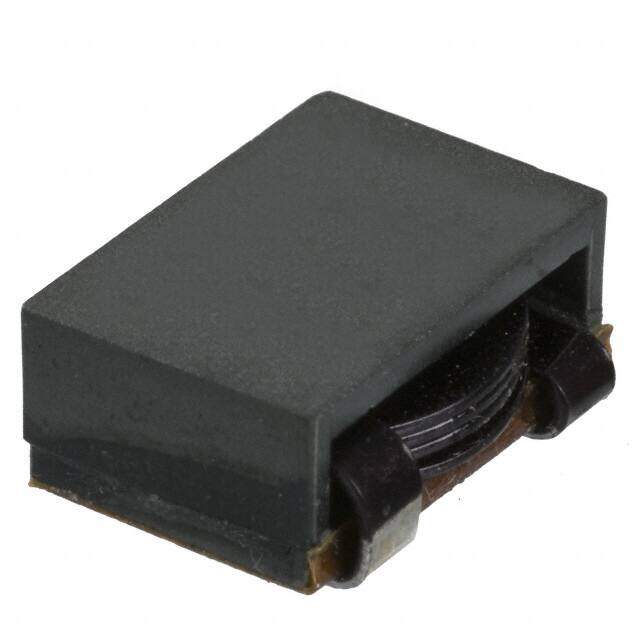

B82559A222A13
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RoHS Compliant Lead Free Cut Tape (CT) Ferrite fixed air core inductor 130C 10kHz 3.2mOhm 2.15muH
PDF
/
Inventory: 8186
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 2.599991g
Material - Core Ferrite
Technical
Packaging Cut Tape (CT)
Tolerance 10%
Termination SMD/SMT
Max Operating Temperature 130°C
Min Operating Temperature -40°C
Composition Wirewound
Shielding Shielded
Depth 11mm
Current Rating 15A
Military Standard Not
Inductance 2.15 μH
Test Frequency 10kHz
Max DC Current 15A
Current - Saturation 15A
DC Resistance (DCR) - Parallel 3.2mOhm
DC Current 15A
Dimensions
Height 4.95mm
Height Seated (Max) 4.953mm
Length 13.2mm
Width 10.6934mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
