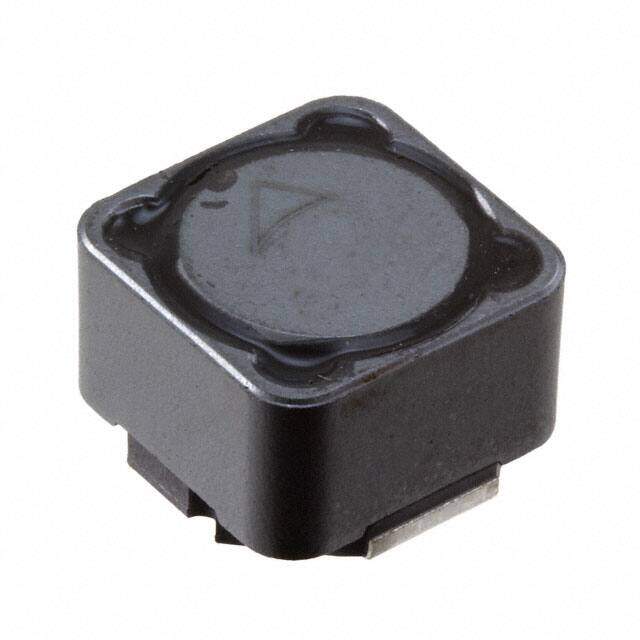

B82477P4224M000
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
EPCOS - B82477P4224M000 - INDUCTOR, POWER, 220UH, 1.24A, 20%
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.54
≥1 USD $1.54
≥10 USD $1.3068
≥100 USD $1.204192
≥500 USD $1.07624
≥1000 USD $0.896808
Inventory: 444
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.335 8.50mm
Technical
Current - Saturation 1.35A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 305mOhm Max
Inductance 220μH
Shielding Shielded
Current Rating (Amps) 1.24A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Series B82477P4
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
