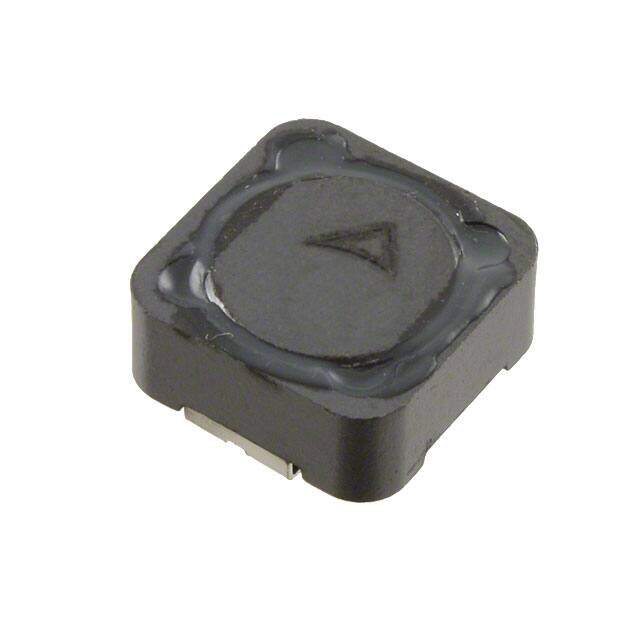

B82477G2104M000
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
EPCOS B82477G2104M000 Surface Mount Power Inductor, B82477G2 Series, 100 H, 1.3 A, Shielded, 0.16 ohm
PDF
/
Buying Options
Total Price: USD $1.19
Unit Price: USD $1.188
≥1 USD $1.188
≥10 USD $1.00848
≥100 USD $0.916608
≥500 USD $0.86152
≥1000 USD $0.714824
≥3000 USD $0.659859
Inventory: 157
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.236 6.00mm
Technical
Inductance Frequency - Test 1kHz
DC Resistance (DCR) 160mOhm Max
Inductance 100μH
Shielding Shielded
Current Rating (Amps) 1.3A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.484Lx0.484W 12.30mmx12.30mm
Series B82477G2
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
