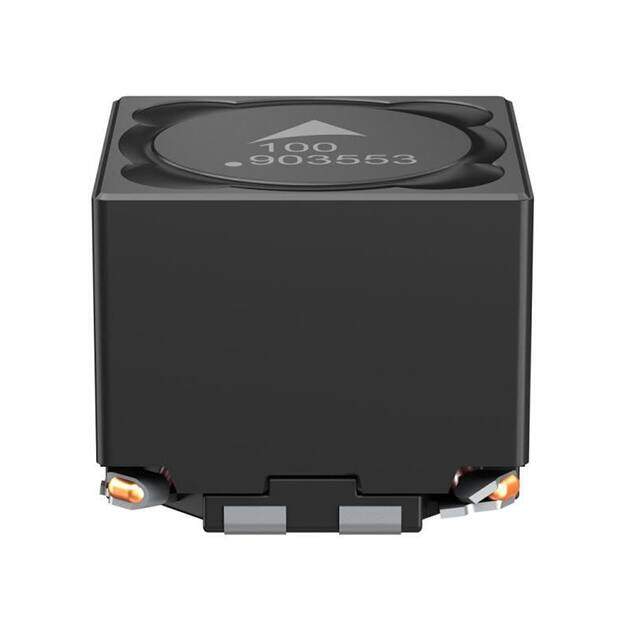

B82477D6473M603
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
47μH Shielded Wirewound Inductor 2.83A 94mOhm Max Nonstandard
PDF
/
Buying Options
Total Price: USD $2.47
Unit Price: USD $2.4728
≥1 USD $2.4728
≥10 USD $2.068
≥100 USD $1.88848
≥500 USD $1.618672
≥1000 USD $1.483856
Inventory: 519
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -55°C~150°C
Series B82477D6
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 2.83A
Shielding Shielded
Inductance 47μH
DC Resistance (DCR) 94mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 4.7A
Dimensions
Height Seated (Max) 0.413 10.50mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
