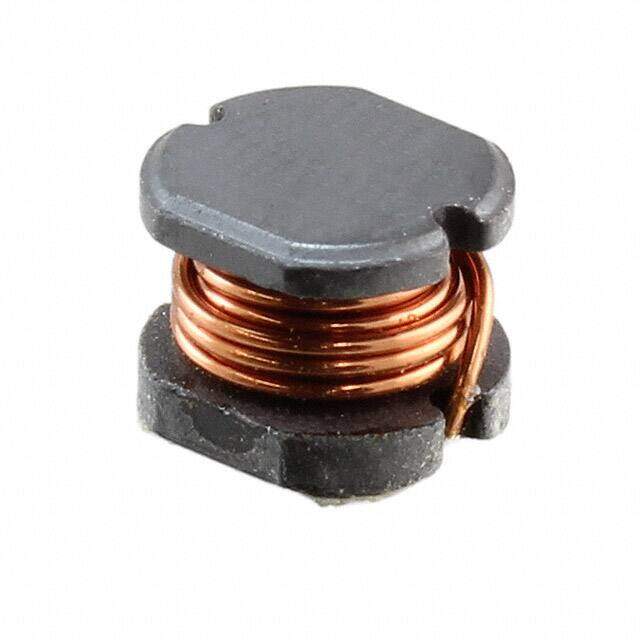

CD54NP-470LC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CD54 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 47muH
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.792
≥1 USD $0.792
≥10 USD $0.6732
≥100 USD $0.61248
≥500 USD $0.57552
≥1000 USD $0.477576
≥3000 USD $0.440845
Inventory: 6602
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.191 4.85mm
Height 4.85mm
Technical
Case/Size Code 2422
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 720mA
DC Resistance (DCR) 370mOhm Max
Test Frequency 2.52MHz
Inductance 47μH
Current Rating 720mA
Depth 5.5mm
Number of Functions 1
Shielding NO
Packing Method TR, 13 INCH
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±15%
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Series CD54
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 19 Weeks
