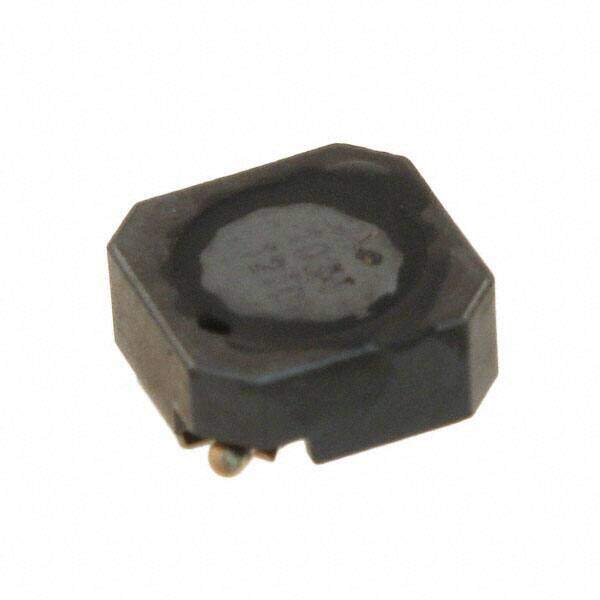

B82462G2222M image
Favorite
B82462G2222M image
Favorite

B82462G2222M

TDK Electronics Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description B82462G2 Nonstandard 0.248Lx0.248W 6.30mmx6.30mm 2.2muH
PDF
/
Inventory: 9417
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings AEC-Q200
Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 6.2992mm
Length 6.2992mm
Height Seated (Max) 0.098 2.50mm
Height 2.9972mm

Technical

Current - Saturation 2.55A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 100kHz
DC Resistance (DCR) 32mOhm Max
Test Frequency 100kHz
Inductance 2.2μH
Current Rating 2.3A
Shielding Shielded
Current Rating (Amps) 2.3A
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.248Lx0.248W 6.30mmx6.30mm
Series B82462G2
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C

Physical

Material - Core Ferrite
Weight 1.5g
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
