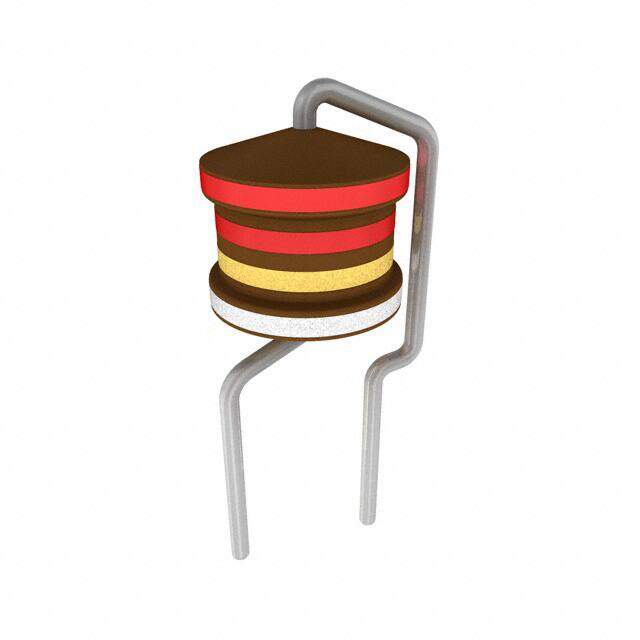

B82144B2222K000
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
EPCOS B82144B2222K000 INDUCTOR, 2.2UH, 10%, 3.65A, 140MHZ
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.6072
≥1 USD $0.6072
≥10 USD $0.51832
≥100 USD $0.475552
≥500 USD $0.432256
≥1000 USD $0.384648
≥3000 USD $0.363018
Inventory: 734
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series LBC
Size / Dimension 0.256Dia 6.50mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 3.65A
Shielding Unshielded
Inductance 2.2μH
DC Resistance (DCR) 55mOhm Max
Frequency - Self Resonant 140MHz
Q @ Freq 60 @ 2.52MHz
Inductance Frequency - Test 1MHz
Current - Saturation 6A
Dimensions
Height Seated (Max) 0.551 14.00mm
Compliance
RoHS Status ROHS3 Compliant
