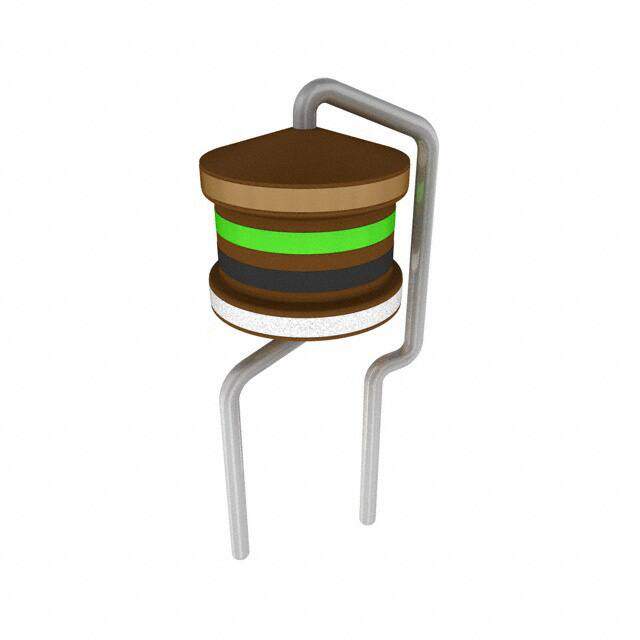

B82144B2153K000
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 15UH 2.3A 140 MOHM TH
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.44352
≥100 USD $0.406912
≥500 USD $0.369952
≥1000 USD $0.329296
≥3000 USD $0.310781
Inventory: 1022
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series LBC
Size / Dimension 0.256Dia 6.50mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 2.3A
Shielding Unshielded
Inductance 15μH
DC Resistance (DCR) 140mOhm Max
Frequency - Self Resonant 13MHz
Q @ Freq 50 @ 252kHz
Inductance Frequency - Test 100kHz
Current - Saturation 2.4A
Dimensions
Height Seated (Max) 0.551 14.00mm
Compliance
RoHS Status ROHS3 Compliant
