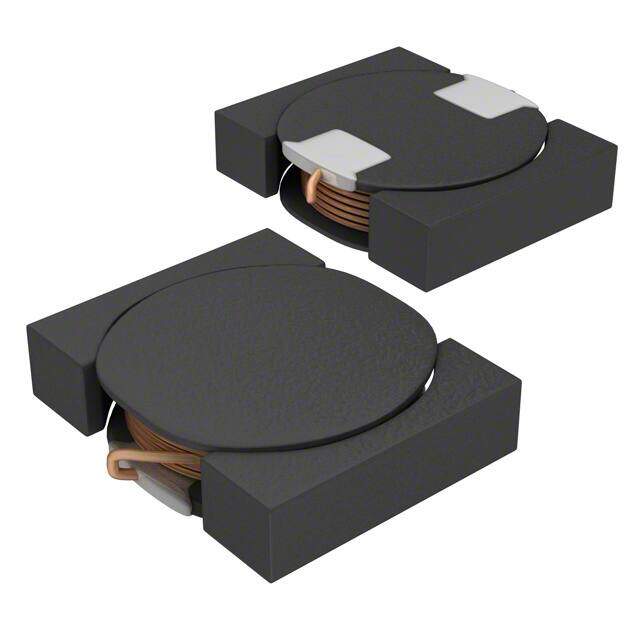

VLF504012MT-100M image
Favorite
VLF504012MT-100M image
Favorite

VLF504012MT-100M

TDK Corporation
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description VLF-M Nonstandard 0.197Lx0.157W 5.00mmx4.00mm 10muH
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.3992
≥1 USD $1.3992
≥10 USD $1.19152
≥100 USD $1.097888
≥500 USD $0.981024
≥1000 USD $0.81752
≥3000 USD $0.794147
Inventory: 1007
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC No SVHC

Dimensions

Height Seated (Max) 0.047 1.20mm
Height 1.2mm

Technical

RMS Current (Irms) 1.3A
Inductance Tolerance 20%
Max DC Current 1.18A
DC Resistance (DCR) 230mOhm Max
Test Frequency 1MHz
Inductance 10μH
Current Rating 1.3A
Shielding Shielded
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Tolerance ±20%
Size / Dimension 0.197Lx0.157W 5.00mmx4.00mm
Series VLF-M
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status EOL ANNOUNCED (Last Updated: 1 month ago)
