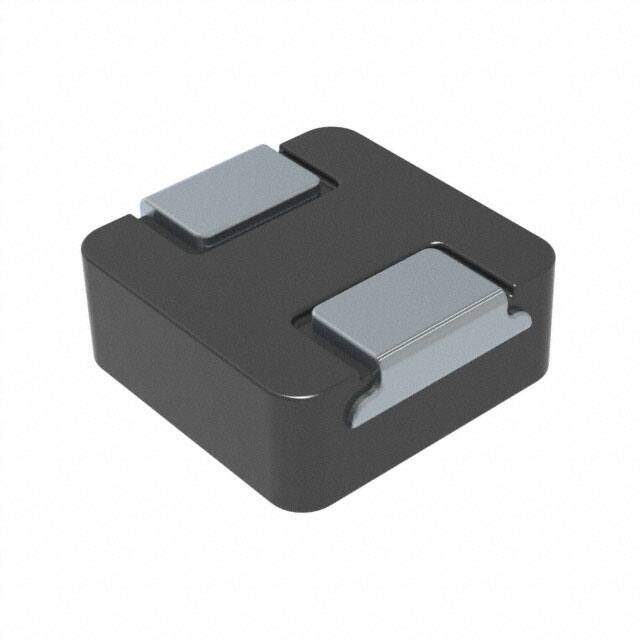

VCMT053T-100MN5
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Active Tape & Reel (TR) Metal Fixed Inductor -55C~155C 100kHz 129.5mOhm Max 10muH
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.1352
≥1 USD $1.1352
≥10 USD $0.95656
≥100 USD $0.869792
≥500 USD $0.817696
≥1000 USD $0.678568
≥3000 USD $0.626349
Inventory: 3856
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Technical
Current - Saturation 2A
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 129.5mOhm Max
Inductance 10μH
Shielding Unshielded
Current Rating (Amps) 2.5A
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.215Lx0.207W 5.45mmx5.25mm
Series VCMT053T
Packaging Tape & Reel (TR)
Operating Temperature -55°C~155°C
Physical
Material - Core Metal
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
