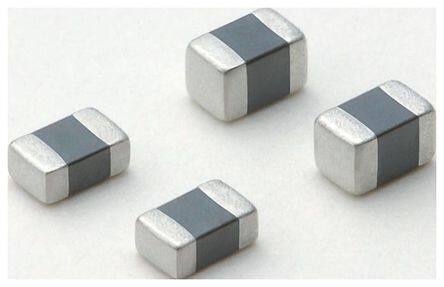

MLZ2012E100MT
RoHS
/
Package 0805
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR RoHS Compliant Lead Free WRAPAROUND Fixed Inductor 125C 50MHz 400mOhm 10muH
PDF
/
Buying Options
Total Price: USD $0.07
Unit Price: USD $0.06935
≥1 USD $0.06935
≥10 USD $0.057
≥100 USD $0.0551
≥500 USD $0.0532
≥1000 USD $0.05225
≥10000 USD $0.04655
Inventory: 47932
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case 0805
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Packaging Cut Tape
Published 2006
Series MLZ2012
Tolerance 20%
JESD-609 Code e3
Pbfree Code yes
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Tin (Sn)
Max Operating Temperature 125°C
Min Operating Temperature -55°C
HTS Code 8504.50.80.00
Packing Method TR
Shielding Shielded
Number of Functions 1
Depth 1.45mm
Military Standard Not
Inductance 10 μH
Test Frequency 2MHz
Max DC Current 350mA
Frequency - Self Resonant 50MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 2012M
DC Resistance (DCR) - Parallel 400mOhm
Inductance Tolerance 20%
Inductance-Nom (L) 10 μH
DC Current 300mA
Special Feature DCR IS MEASURED AT 30% TOLERANCE
Dimensions
Height 1.25mm
Length 2mm
Width 1.25mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
