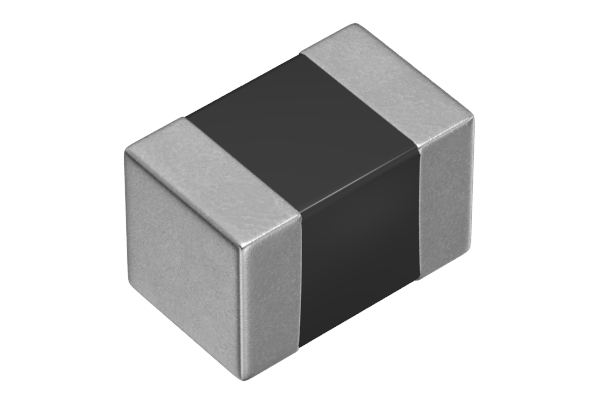

MLF2012K560MT000
RoHS
/
Package 0805
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MLF2012 0805 56muH 20%
PDF
/
Inventory: 7108
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Physical
Mount Surface Mount
Package / Case 0805
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Published 2013
Series MLF2012
Tolerance 20%
JESD-609 Code e2
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Silver (Sn/Ag)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8504.50.80.00
Packing Method TR, 7 Inch
Shielding Shielded
Number of Functions 1
Current Rating 4mA
Inductance 56 μH
Test Frequency 2MHz
Frequency - Self Resonant 10MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Quality Factor-Min (at L-nom) 35
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 2012
DC Resistance (DCR) - Parallel 1.8Ohm
Rated Current-Max 0.004A
Inductance-Nom (L) 56 μH
Dimensions
Height Seated (Max) 1.4478mm
Length 2.0066mm
Width 1.2446mm
Compliance
RoHS Status RoHS Compliant
