SDR0805-560K
RoHS
/
Package 0805
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR RoHS Compliant WRAPAROUND DUAL ENDED fixed air core inductor 125C 9MHz 240mOhm 56muH
PDF
/
Inventory: 7365
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 5.3mm
Diameter 7.8mm
Technical
Special Feature Q MEASURED AT 2.52 MHZ
Inductance-Nom (L) 56 μH
DC Resistance (DCR) - Parallel 240mOhm
Q Factor 15
Inductor Type GENERAL PURPOSE INDUCTOR
Quality Factor-Min (at L-nom) 15
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 9MHz
Max DC Current 940mA
Test Frequency 0.001MHz
Inductance 56 μH
Construction Wirewound
Number of Functions 1
Shielding NO
Packing Method TR, Embossed
HTS Code 8504.50.80.00
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Terminal Finish Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
JESD-609 Code e0
Tolerance 10%
Physical
Core Material FERRITE
Shape/Size Description CYLINDRICAL PACKAGE
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 0805

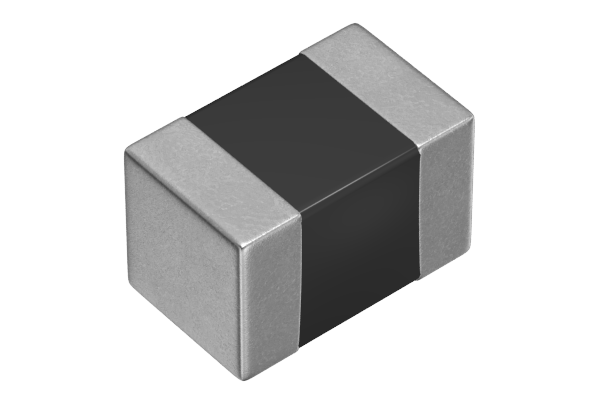

Alternative Model
