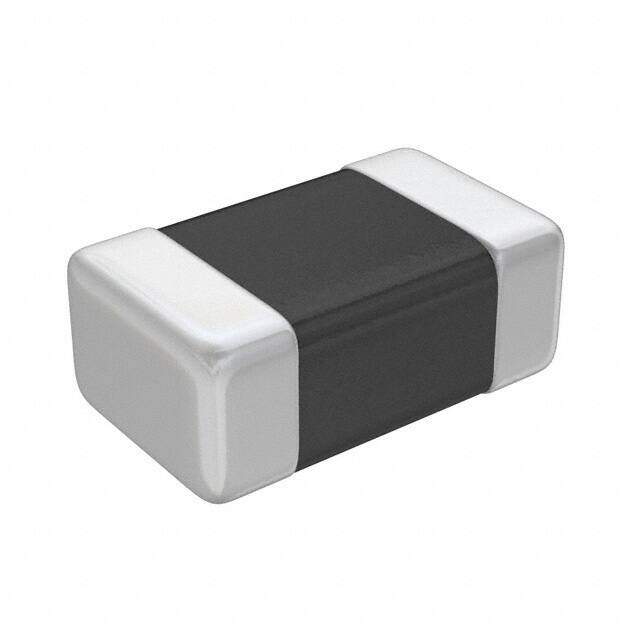

CPL2512TR68M image
Favorite
CPL2512TR68M image
Favorite

CPL2512TR68M

TDK Corporation
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 680NH 1.4A 77 MOHM SMD
PDF
/
Inventory: 8919
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.047 1.20mm
Height 1mm

Technical

Current - Saturation 1.6A
DC Resistance (DCR) 77mOhm
Inductance 680nH
Current Rating 1.4A
Shielding Shielded
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.098Lx0.059W 2.50mmx1.50mm
Series CPL
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Lifecycle Status OBSOLETE (Last Updated: 2 months ago)
