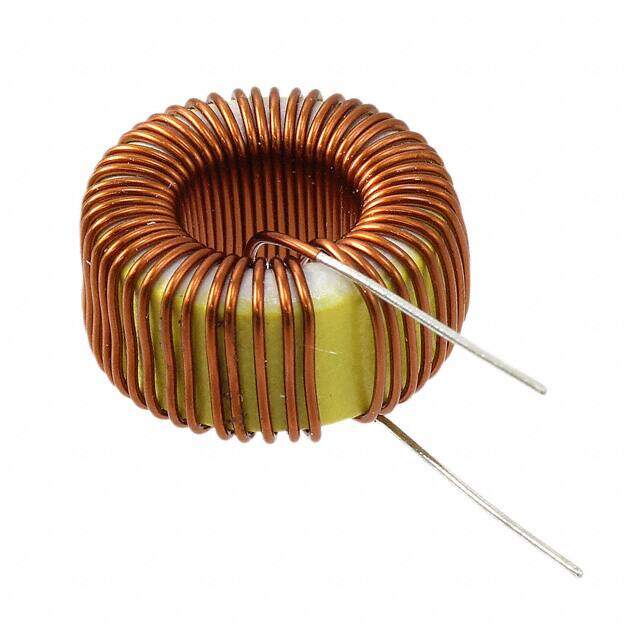

DPO-0.5-100
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 100UH 500MA 140 MOHM
PDF
/
Inventory: 1727
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series DP
Size / Dimension 0.551Diax0.315W 14.00mmx8.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Current Rating (Amps) 500mA
Shielding Unshielded
Inductance 100μH
DC Resistance (DCR) 140mOhm Max
Inductance Frequency - Test 10kHz
Compliance
RoHS Status ROHS3 Compliant
