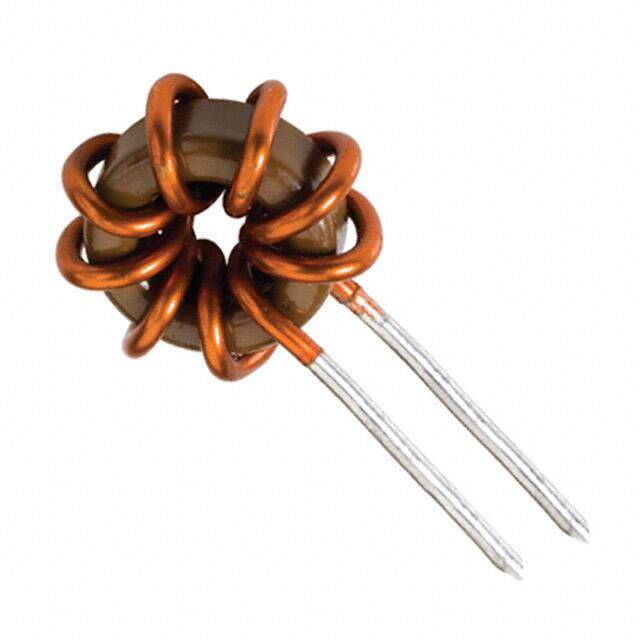

HTPT66-104K
RoHS
/
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Non-RoHS Compliant Toroidal Active Radial Fixed Inductor -55C~200C 1kHz 145mOhm Max 100muH
PDF
/
Inventory: 2406
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Technical
Current - Saturation 1.8A
Inductance Frequency - Test 1kHz
Lead/Base Style Radial
Inductor Application POWER INDUCTOR
Max DC Current 1.9A
DC Resistance (DCR) 145mOhm Max
Test Frequency 0.001MHz
Inductance 100μH
Lead Diameter 0.022 mm
Lead Spacing 7.1mm
Lead Length 25.4mm
Depth 9.14mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Toroidal
ECCN Code EAR99
Number of Terminations 2
Part Status Active
Pbfree Code no
Tolerance ±10%
Size / Dimension 0.660Diax0.360W 16.76mmx9.14mm
Series HTPT66
Packaging Bulk
Operating Temperature -55°C~200°C
Physical
Shape/Size Description CIRCULAR PACKAGE
Material - Core Iron
Terminal Shape WIRE
Surface Mount NO
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Supply Chain
Factory Lead Time 6 Weeks
