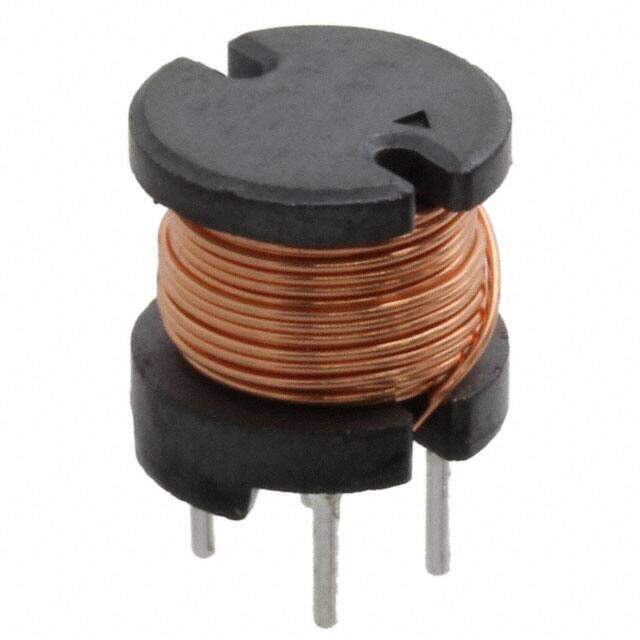

RCH110NP-331K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder, 4 Leads (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RCH-110 Radial Vertical Cylinder 4Leads (Open) 0.394Dia 10.00mm 330muH
PDF
/
Buying Options
Total Price: USD $0.96
Unit Price: USD $0.9592
≥1 USD $0.9592
≥10 USD $0.80872
≥100 USD $0.735328
≥500 USD $0.691152
≥1000 USD $0.573496
≥3000 USD $0.529346
Inventory: 422
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder, 4 Leads (Open)
Weight 3.099992g
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2012
Series RCH-110
Size / Dimension 0.394Dia 10.00mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination Radial
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Reach Compliance Code unknown
Current Rating 930mA
Lead Pitch 5mm
Inductance 330μH
Test Frequency 1kHz
DC Resistance (DCR) 520mOhm Max
Max DC Current 930mA
Frequency - Self Resonant 2.8MHz
Dimensions
Diameter 10mm
Height Seated (Max) 0.413 10.50mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
