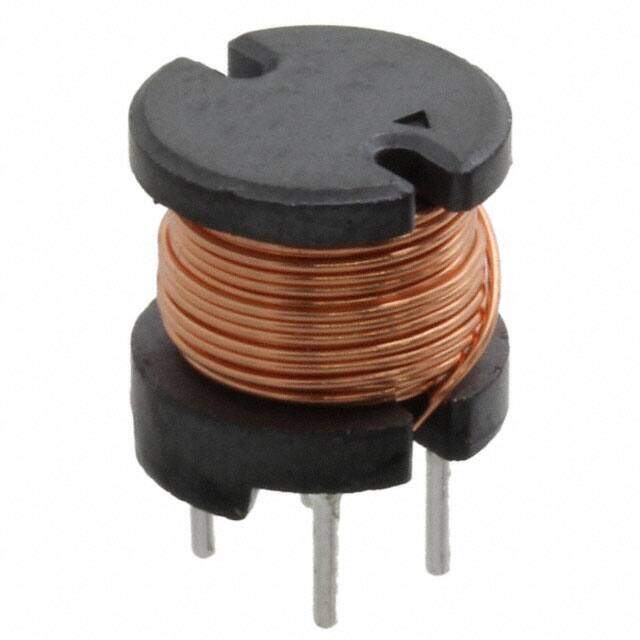

RCH106NP-331K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder, 4 Leads (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RCH-106 Radial Vertical Cylinder 4Leads (Open) 0.394Dia 10.00mm 330muH
PDF
/
Inventory: 9332
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.256 6.50mm
Height 6.5mm
Technical
Lead/Base Style Pin
Max DC Current 620mA
DC Resistance (DCR) 1.1Ohm Max
Test Frequency 1kHz
Inductance 330μH
Lead Diameter 0.7 mm
Lead Length 3.5mm
Current Rating 620mA
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±10%
Size / Dimension 0.394Dia 10.00mm
Series RCH-106
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Weight 1.700008g
Package / Case Radial, Vertical Cylinder, 4 Leads (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
