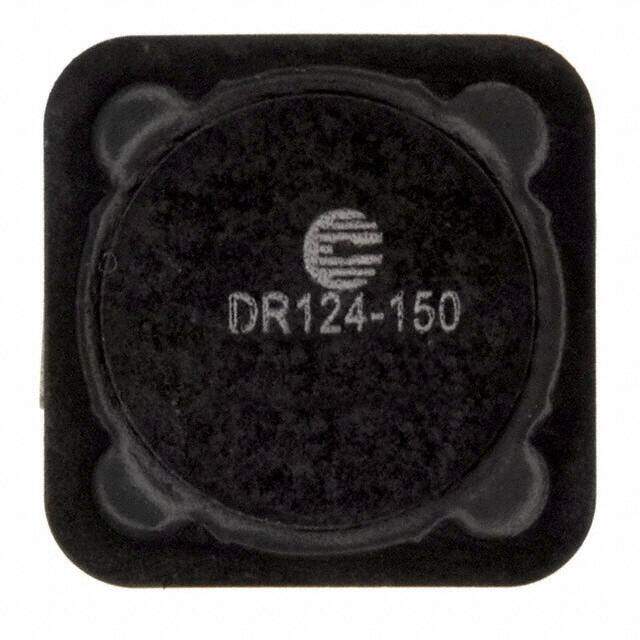

DR124-150-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
DR124 Nonstandard 0.492Lx0.492W 12.50mmx12.50mm 15muH
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9856
≥1 USD $0.9856
≥10 USD $0.83072
≥100 USD $0.755392
≥500 USD $0.71016
≥1000 USD $0.589336
≥3000 USD $0.544016
Inventory: 1088
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 12.3mm
Length 12.3mm
Height Seated (Max) 0.177 4.50mm
Height 4.5mm
Technical
Self Resonant Frequency 1MHz
RMS Current (Irms) 3.6A
DC Current 3.6A
Inductance Tolerance 20%
Current - Saturation 4.62A
Inductance Frequency - Test 100kHz
Max DC Current 4.62A
DC Resistance (DCR) 44.8mOhm Max
Test Frequency 100kHz
Inductance 15μH
Military Standard Not
Current Rating 3.6A
Depth 12.3mm
Shielding Shielded
Current Rating (Amps) 3.6A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Series DR124
Published 2014
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Weight 3.175147g
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
