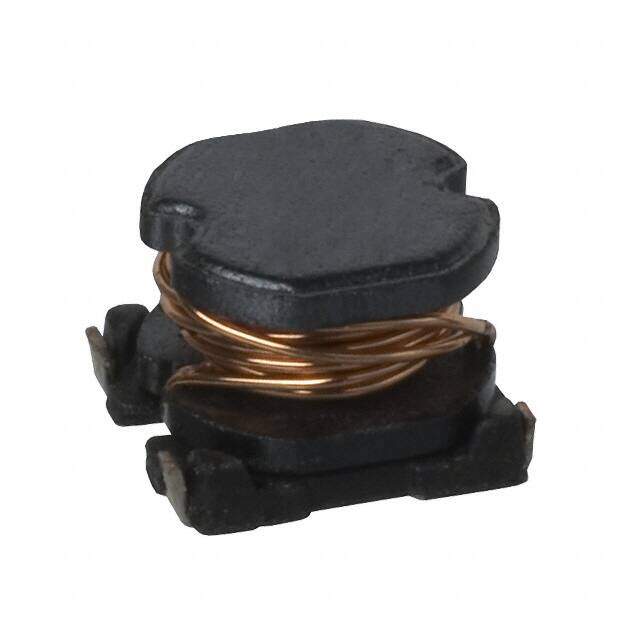

CR43NP-2R2MC image
Favorite
CR43NP-2R2MC image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description CR43 Nonstandard 0.189Lx0.169W 4.80mmx4.30mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.5808
≥1 USD $0.5808
≥10 USD $0.4884
≥100 USD $0.44352
≥500 USD $0.416944
≥1000 USD $0.346016
≥3000 USD $0.319405
Inventory: 1238
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.138 3.50mm
Height 3.2mm

Technical

DC Current 1.75A
Case/Size Code 1917
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 68.3MHz
Max DC Current 1.75A
DC Resistance (DCR) 71.2mOhm Max
Test Frequency 7.96MHz
Inductance 2.2μH
Military Standard Not
Current Rating 1.75A
Depth 4.3mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.189Lx0.169W 4.80mmx4.30mm
Series CR43
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks

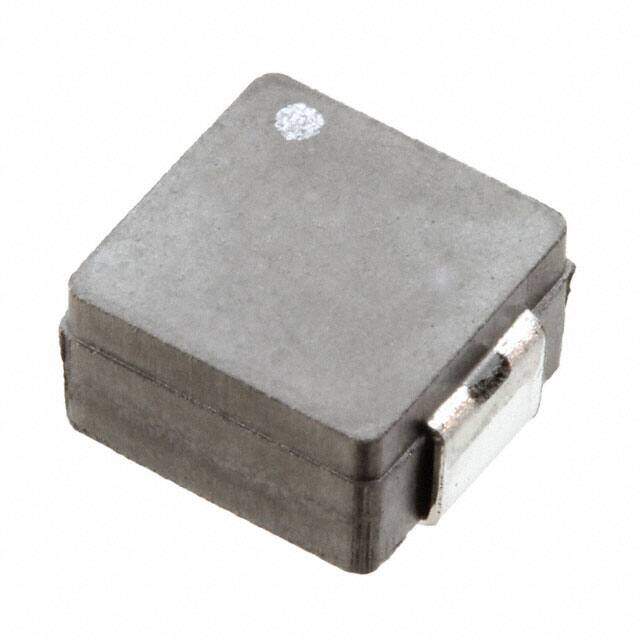

Alternative Model
