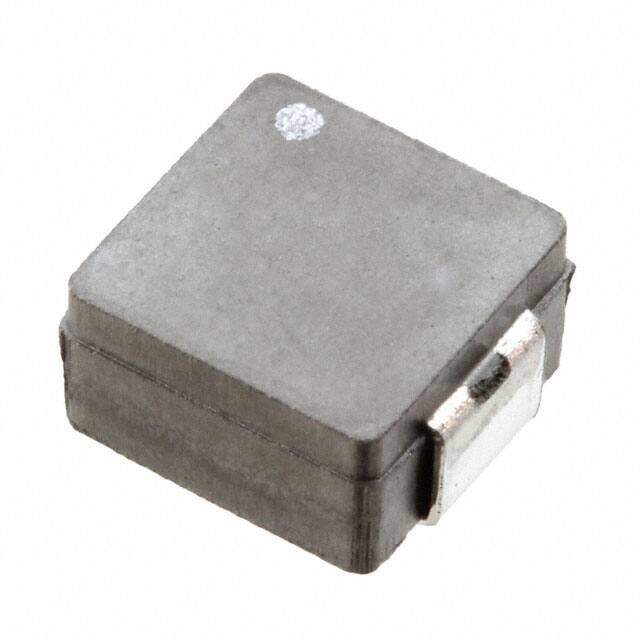

MPLCH0740L2R2 image
Favorite
MPLCH0740L2R2 image
Favorite

MPLCH0740L2R2

KEMET
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description MPLCH Nonstandard 0.307Lx0.264W 7.80mmx6.70mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.61
Unit Price: USD $1.607827
≥1 USD $1.607827
≥10 USD $1.516817
≥100 USD $1.430956
≥500 USD $1.349964
≥1000 USD $1.273552
Inventory: 1135
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 17 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Core Material COMPOSITE

Technical

Operating Temperature -20°C~120°C
Packaging Tape & Reel (TR)
Published 2013
Series MPLCH
Size / Dimension 0.307Lx0.264W 7.80mmx6.70mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 9.3A
Shielding Shielded
Number of Functions 1
Inductance 2.2μH
Test Frequency 0.1MHz
DC Resistance (DCR) 13mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 9A
Rated Current-Max 9.3A
Inductance Tolerance 20%

Dimensions

Height Seated (Max) 0.157 4.00mm

Compliance

RoHS Status ROHS3 Compliant
