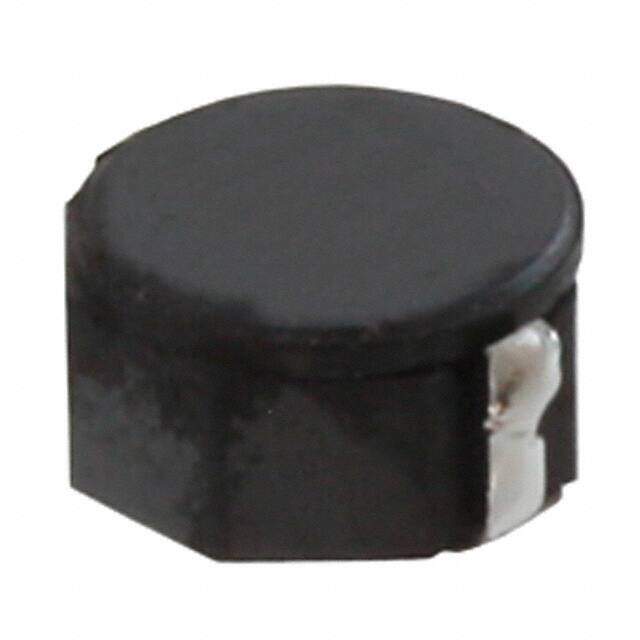

CDRH8D43NP-680NC image
Favorite
CDRH8D43NP-680NC image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description CDRH8D43 Nonstandard 0.315Lx0.315W 8.00mmx8.00mm 68muH
PDF
/
Buying Options
Total Price: USD $8.03
Unit Price: USD $8.0294
≥1 USD $8.0294
≥10 USD $6.58825
≥100 USD $6.38305
≥500 USD $6.1769
≥1000 USD $5.97075
Inventory: 1132
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Published 2012
Series CDRH8D43
Size / Dimension 0.315Lx0.315W 8.00mmx8.00mm
Tolerance ±30%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 8.3mm
Current Rating 1A
Inductance 68μH
Test Frequency 100kHz
DC Resistance (DCR) 240mOhm Max
Max DC Current 1A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 1.5A
Case/Size Code 3232

Dimensions

Height 4.5mm
Height Seated (Max) 0.177 4.50mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
