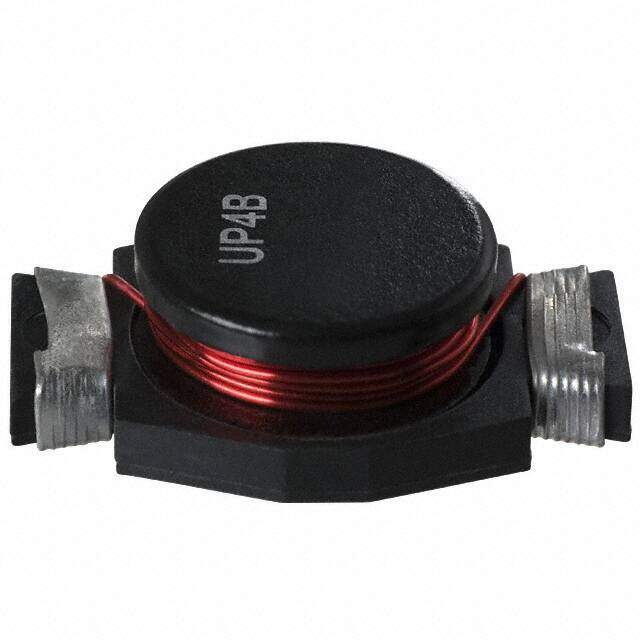

UP4B-680-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
UNI-PAC? Nonstandard 0.870Lx0.591W 22.10mmx15.00mm 68muH
PDF
/
Buying Options
Total Price: USD $2.98
Unit Price: USD $2.9832
≥1 USD $2.9832
≥10 USD $2.4948
≥100 USD $2.277792
≥500 USD $1.952368
≥1000 USD $1.789656
Inventory: 1116
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Weight 6.350293g
Material - Core Ferrite
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2007
Series UNI-PAC?
Size / Dimension 0.870Lx0.591W 22.10mmx15.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.4A
Shielding Unshielded
Depth 15mm
Current Rating 2.4A
Military Standard Not
Inductance 68μH
Test Frequency 100kHz
DC Resistance (DCR) 120mOhm Max
Max DC Current 2.4A
Inductance Frequency - Test 100kHz
Current - Saturation 4.3A
DC Current 2.4A
Dimensions
Height 7.87mm
Height Seated (Max) 0.310 7.87mm
Length 22.098mm
Width 14.986mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
