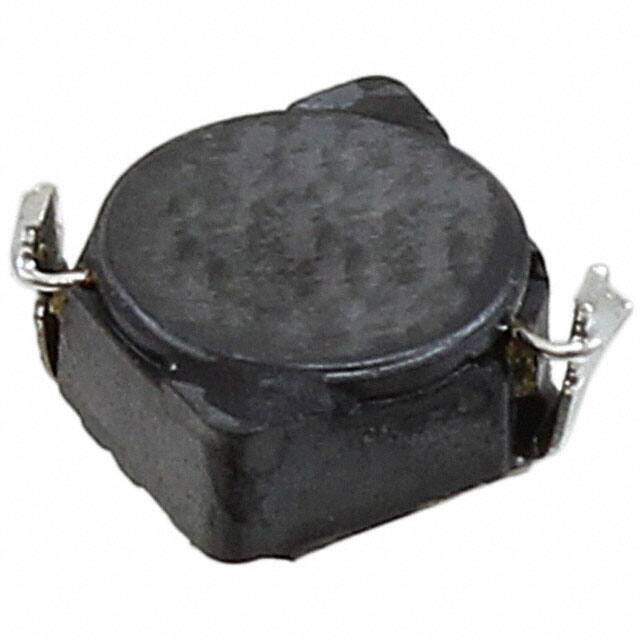

CDRH4D22NP-100NC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRH4D22 Nonstandard 0.185Lx0.185W 4.70mmx4.70mm 10muH
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.73304
≥100 USD $0.666336
≥500 USD $0.626208
≥1000 USD $0.51964
≥3000 USD $0.47967
Inventory: 1121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 42 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Weight 200.005886mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~100°C
Packaging Cut Tape (CT)
Published 2012
Series CDRH4D22
Size / Dimension 0.185Lx0.185W 4.70mmx4.70mm
Tolerance ±30%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 5mm
Current Rating 1.82A
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 102.4mOhm Max
Max DC Current 1.82A
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 800mA
Case/Size Code 1919
Dimensions
Height 2.4mm
Height Seated (Max) 0.094 2.40mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
