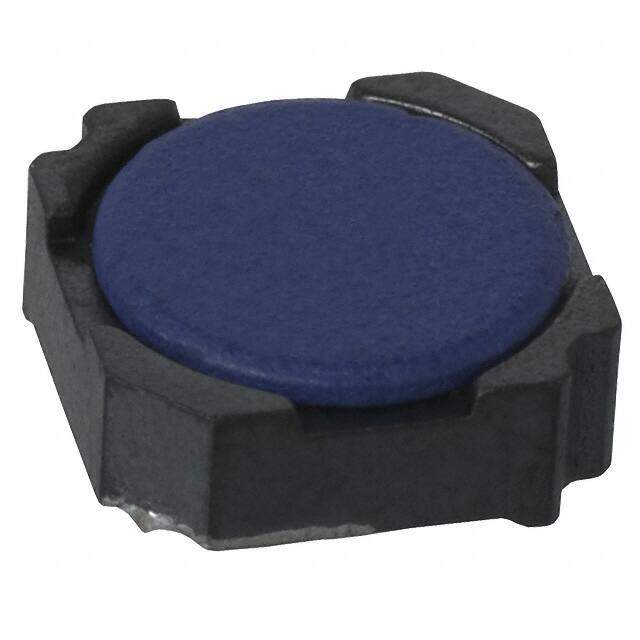

CDR7D28MNNP-331NC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDR7D28MN Nonstandard 0.287Lx0.287W 7.30mmx7.30mm 330muH
PDF
/
Inventory: 9555
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Weight 500.000539mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2006
Series CDR7D28MN
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Tolerance ±25%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Depth 7.6mm
Current Rating 310mA
Inductance 330μH
Test Frequency 100kHz
DC Resistance (DCR) 2.184Ohm Max
Max DC Current 350mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 350mA
Case/Size Code 2929
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
