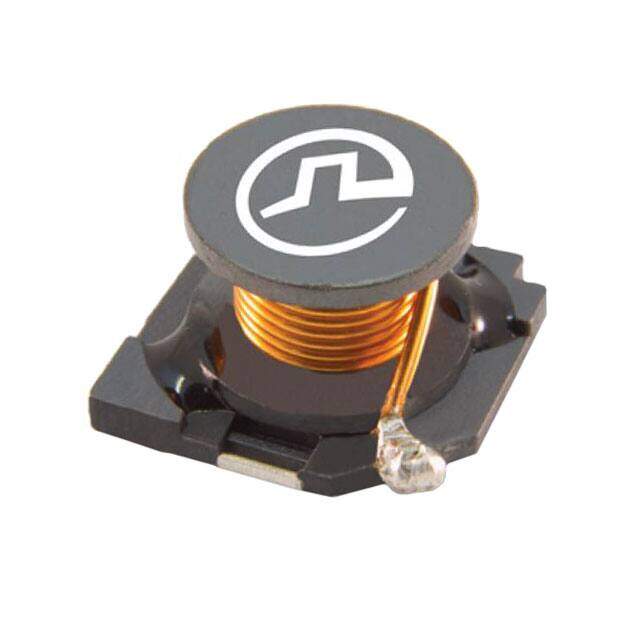

SDR1006-560KL

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SDR1006 Nonstandard 0.386Lx0.386W 9.80mmx9.80mm 56muH
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7392
≥1 USD $0.7392
≥10 USD $0.63448
≥100 USD $0.581504
≥500 USD $0.528528
≥1000 USD $0.470448
≥3000 USD $0.444048
Inventory: 496
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height Seated (Max) 0.228 5.80mm
Height 5.8mm
Diameter 9.8mm

Technical

RMS Current (Irms) 1.15A
DC Current 1.15A
Inductance Tolerance 10%
Q Factor 20
Q @ Freq 20 @ 2.52MHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 7.5MHz
Max DC Current 1.15A
DC Resistance (DCR) 190mOhm Max
Test Frequency 1kHz
Inductance 56μH
Military Standard Not
Current Rating 2.1A
Construction Chip
Depth 9.8mm
Number of Functions 1
Shielding NO
Packing Method TR, Embossed , 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Resistance 190MOhm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.386Lx0.386W 9.80mmx9.80mm
Series SDR1006
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Number of Pins 2
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks

Alternative Model
