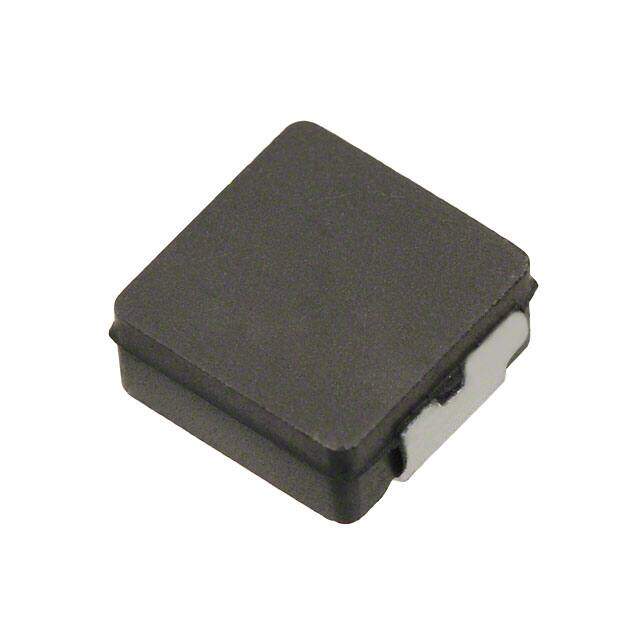

CDMC6D28NP-R20MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDMC6D28 Nonstandard 0.285Lx0.256W 7.25mmx6.50mm 200nH
PDF
/
Buying Options
Total Price: USD $0.96
Unit Price: USD $0.9592
≥1 USD $0.9592
≥10 USD $0.80872
≥100 USD $0.735328
≥500 USD $0.691152
≥1000 USD $0.573496
≥3000 USD $0.529338
Inventory: 746
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Metal Composite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series CDMC6D28
Size / Dimension 0.285Lx0.256W 7.25mmx6.50mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 6.7mm
Current Rating 17.4A
Inductance 200nH
Test Frequency 1MHz
DC Resistance (DCR) 2.5mOhm Max
Max DC Current 27.2A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 21.7A
Case/Size Code 2926
Dimensions
Height 9mm
Height Seated (Max) 0.118 3.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free

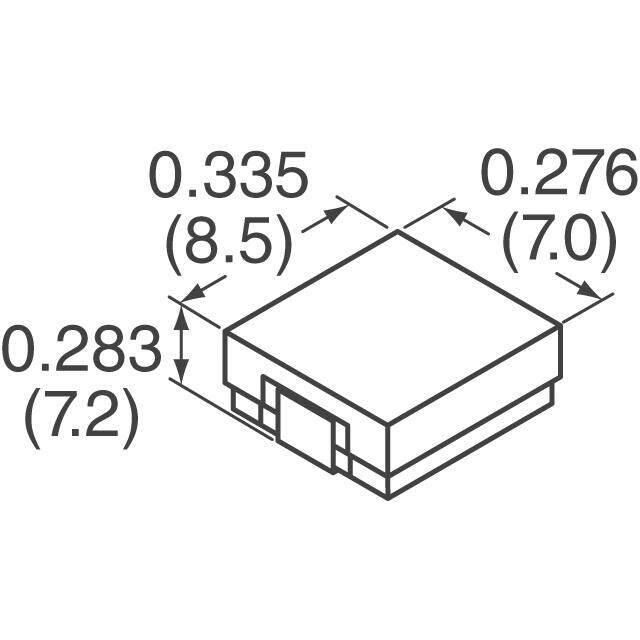

Alternative Model
