FP0708R1-R20-R
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
IND, F P , 200 H, 36A, 2 PADS, SMT
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.905941
≥1 USD $0.905941
≥10 USD $0.661256
Inventory: 105608
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series FLAT-PAC, FP0708

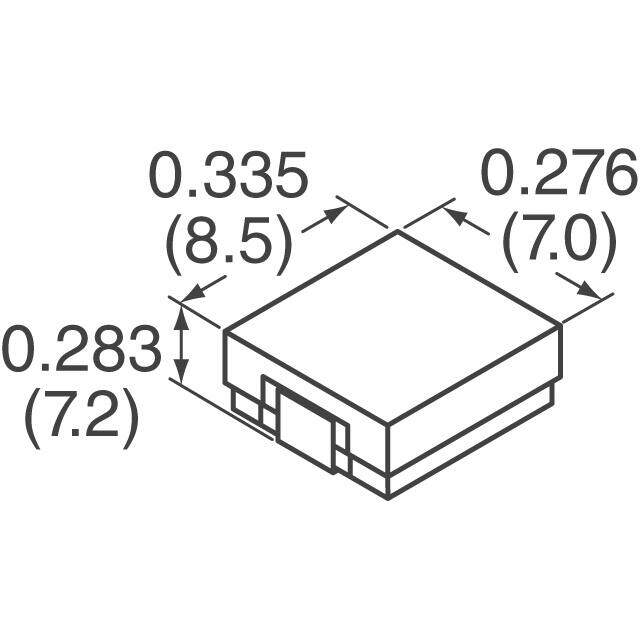

Size / Dimension 0.335Lx0.276W 8.50mmx7.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 44A
Shielding Unshielded
Inductance 200nH
DC Resistance (DCR) 0.35mOhm
Inductance Frequency - Test 100kHz
Current - Saturation 36A
Dimensions
Height Seated (Max) 0.283 7.20mm
Compliance
RoHS Status RoHS Compliant
