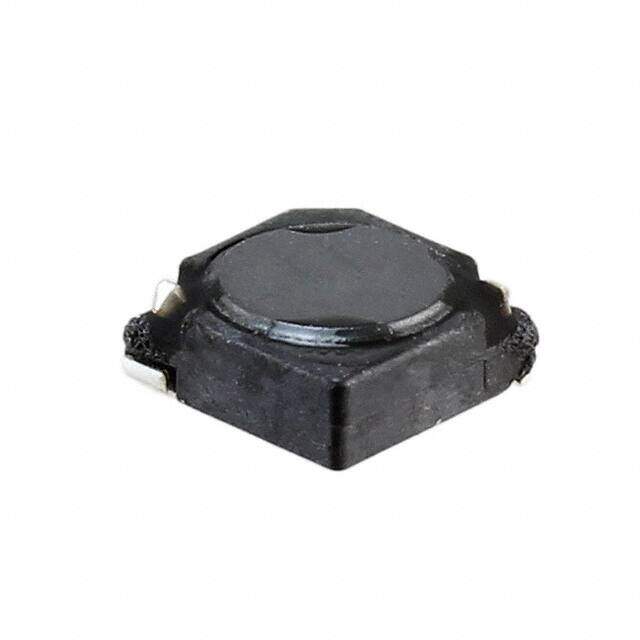

CDC5D23BNP-150KC
RoHS
RoHS compliant
RoHS compliantPackage 2323 (5858 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDC5D23B 2323 (5858Metric) 0.228Lx0.228W 5.80mmx5.80mm 15muH
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.58696
≥100 USD $0.538208
≥500 USD $0.489456
≥1000 USD $0.4356
≥3000 USD $0.411101
Inventory: 78
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2323 (5858 Metric)
Terminal Shape WRAPAROUND
Weight 215.002783mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Published 2007
Series CDC5D23B
Size / Dimension 0.228Lx0.228W 5.80mmx5.80mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Reach Compliance Code unknown
Current Rating 880mA
Case Code (Metric) 5858
Case Code (Imperial) 2323
Inductance 15μH
Test Frequency 100kHz
DC Resistance (DCR) 166mOhm Max
Max DC Current 880mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Dimensions
Height 2.5mm
Height Seated (Max) 0.098 2.50mm
Compliance
RoHS Status ROHS3 Compliant
