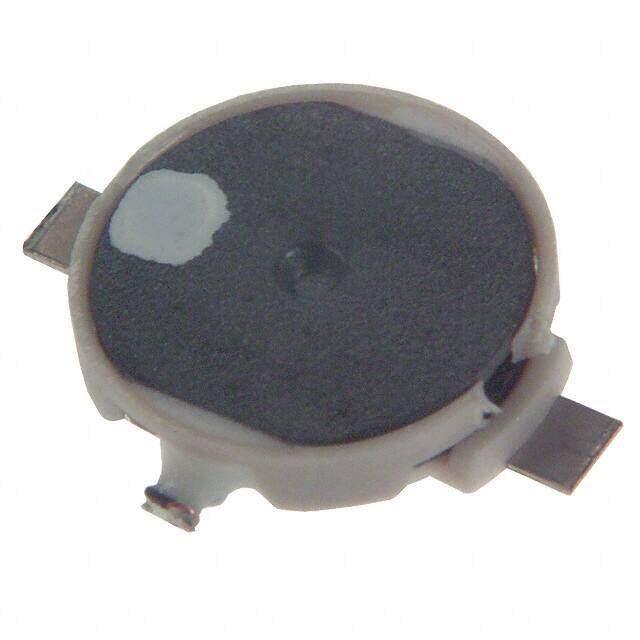

ELT-5KT470LB
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
5KT Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 47muH
PDF
/
Buying Options
Total Price: USD $7.92
Unit Price: USD $7.92395
≥1 USD $7.92395
≥10 USD $6.5018
≥100 USD $6.2985
≥500 USD $6.0952
≥1000 USD $5.8919
Inventory: 16205
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.047 1.20mm
Height 1.1mm
Technical
Special Feature DCR IS MEASURED AT 20% TOLERANCE
Case/Size Code 2623
Terminal Placement DUAL ENDED
Inductor Application DC-DC CONVERTER
Max DC Current 300mA
DC Resistance (DCR) 1.7Ohm
Test Frequency 100kHz
Inductance 47μH
Current Rating 300mA
Construction Chip
Depth 6mm
Number of Functions 1
Shielding Unshielded
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn/Cu)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Tolerance ±15%
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Series 5KT
Published 2008
Packaging Tape & Reel (TR)
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape FLAT
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
