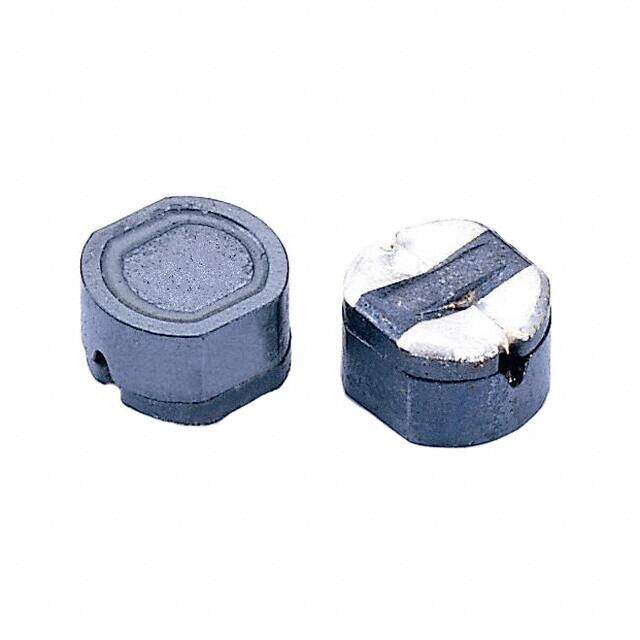

SCR105B-470 image
Favorite
SCR105B-470 image
Favorite

SCR105B-470

Signal Transformer
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Obsolete 2009 Tape & Reel (TR) Fixed Inductor -40C~125C 2.52kHz 140mOhm Max 47muH
PDF
/
Inventory: 8581
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SCR105B
Size / Dimension 0.413Lx0.374W 10.50mmx9.50mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 1.93A
Shielding Shielded
Current Rating 1A
Inductance 47μH
Test Frequency 2.52kHz
DC Resistance (DCR) 140mOhm Max
Inductance Frequency - Test 2.52kHz
Current - Saturation 1A

Dimensions

Height 5.5118mm
Height Seated (Max) 0.217 5.50mm
Length 10.4902mm
Width 9.4996mm

Compliance

RoHS Status ROHS3 Compliant
